2016-2020 Camaro SS to Corvette LT4 supercharger install parts - No supercharger
2016-2020 Camaro SS Lt4 supercharger install parts. These parts allow you to install a 2017-2020 ZL1 or CTSV Supercharger onto a Camaro SS LT1 Liter vehicle.
Parts included are:
ADM Cylinder head adapter plates,Lt4 Supercharger Tensioner bracket,Tensioner and hardware,3 Idler pulleys,Belt for stock Lt4 Supercharger pulley,Stock LT4 Harmonic balancer and bolt,Complete OEM Intercooler Hose system that is plug and play,New lower radiator hose and adapter,Factory ZL1 Heat exchanger with mounting hardware,Factory Intake duct from throttlebody to factory airbox,LT4 Map sensor and adapter harness,Long and short replacement LT4 ZL1 Brake booster pipes,Factory Intercooler Pump and bracket with ADM Power relay harness,Horn Bracket,Purge Valve Extension harness,Evap pipe,Clean air inlet pipe,LT4 Valley cover with extension pipe, 2.7" pulley and modification to supercharger inlet is required - https://c-8parts.com/collections/2016-camaro-ss-performance-parts/products/2016-2018-camaro-ss-corvette-lt4-supercharger-pulley-mod-for-camaro-ss
On the Corvette LT4 supercharger you will be required to send the BLOWER INLET(Easily removed and shippable) to our facility for modifications to the shaft and hub boss. At the time of this modification we will also install the correct hub and pulley of your choice. On a stock fuel system from your LT1 we recommend the 2.7" ,2.75"or 2.8" pulley.
If you increase the fuel supply to your engine via ,Larger Injectors,Larger fuel pump or larger cam fuel lobe ,then and only then will you be able to run the smaller 2.5" or 2.35".
Please note that these engines are a higher compression than the LT4 so you need to understand timing and fueling is very important in the tune.ADM Performance does not offer tunes with these parts.

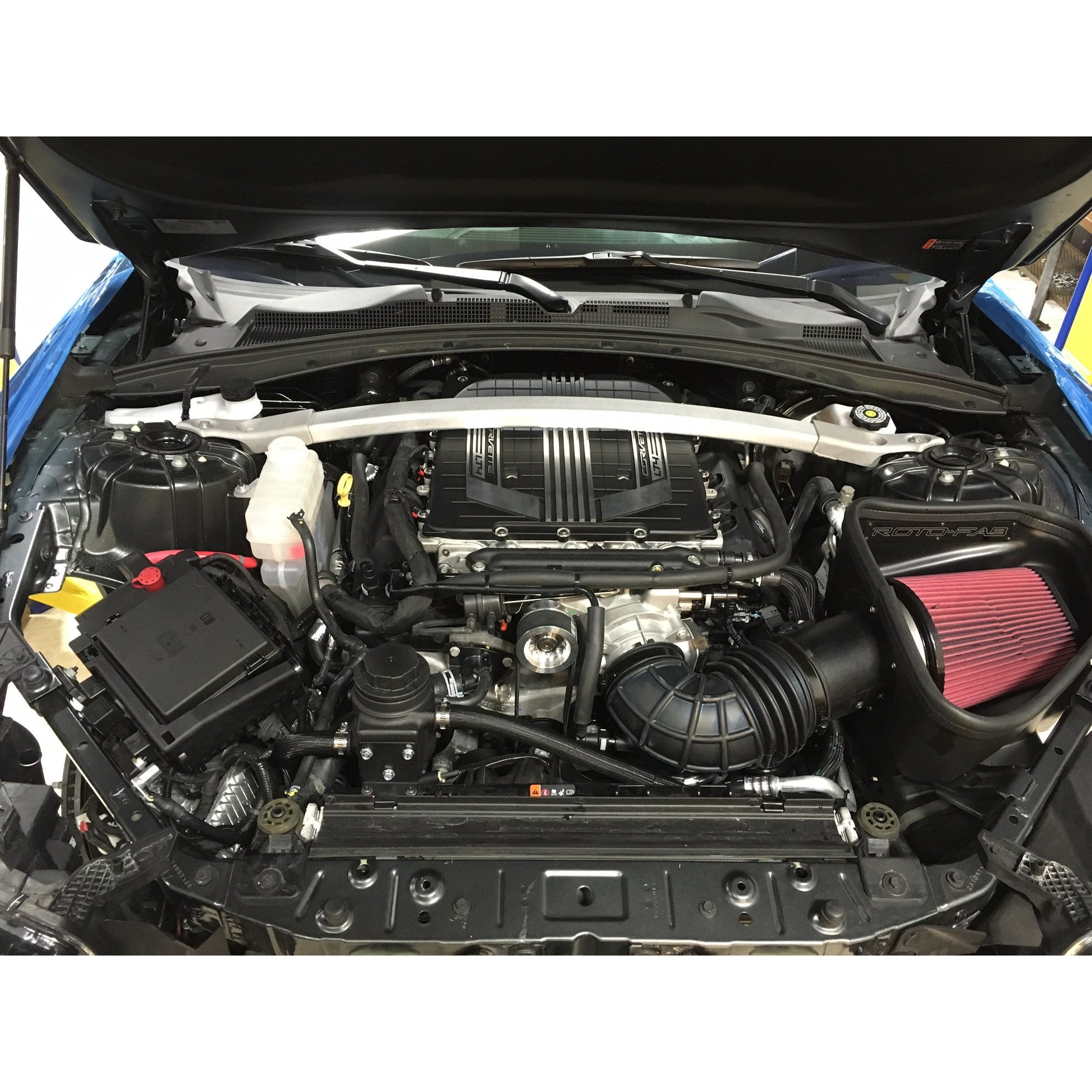

Picture is for reference only.Some items in the photo are upgrades/options.
Due to the many available used takeoff parts online that you may have already purchased and do not need from our supplied list , we reserve the right to remove parts from the above list on a case by case basis.
Optional parts for more boost and hp are available here:
LT4 Injectors - https://c-8parts.com/collections/injectors/products/2016-2018-lt4-injector
LT4 High Pressure pump - https://c-8parts.com/collections/fuel-systems/products/lt4-high-pressure-pump
Rotofab Intake system - https://c-8parts.com/collections/cold-air-intakes/products/lt4-sc-rotoab-intake-upgrade-2016-2018-camaro-ss
Smaller pulley for the supercharger for more boost - https://c-8parts.com/collections/supercharger-pulleys-pulleys
High Capacity heat exchanger - https://c-8parts.com/collections/lsa-supercharger-upgrades/products/2017-2018-camaro-zl1-high-capacity-heat-exchanger
