Magnuson 2650 Port Plates by TooHighPsi

$ 749.00

The simple way to solve fueling issues on the GM GenV LT engines - add Port Injection!

"LP" (low profile) plates are designed to add port injection to your GM GEN V engine with the minimum amount of increase in height of the supercharger or intake manifold.

These plates are a direct bolt on for the LT1 Camaro SS with Magnuson TVS 2650.
C7 Z06 Corvette and ZL1 Camaro require use of our Billet 2650 supercharger lid to provide adequate hood clearance).

NOTE: "LP" Plates work with stock GM valve covers that have been modified to fit a Magnuson Magnum TVS2650R (ignition coils relocated) and:

FIC 1000cc/min (95lb/hr) EV6 USCAR Fuel Injectors for "LP" plates (Set of 8)
FIC 775cc/min (74lb/hr) EV6 USCAR Fuel Injectors for "LP" plates (Set of 8)
SIEMENS 840 cc/min (80 lb/hr) EV6 USCAR Fuel Injector for LP plates (Set of 8)

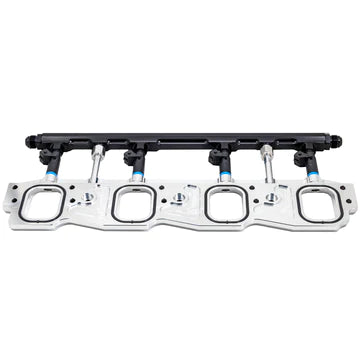

All kits includes 2 plates, brackets, fuel rails, gaskets and necessary hardware to mount injectors under your supercharger (injectors not included).

Magnuson changed 2650 supercharger housing castings around the beginning of 2022. The original housing was produced with 3 pieces (center SC section and 2 intercooler castings bolted to the sides of the center) The later 2022+ housings are all one piece, Please select the correct housing to ensure we provide the correct length bolt for your application.

Fuel Rails are a -8AN, please select to the right if you would like -6AN or -8AN fittings with your kit.

LT4 option adds PCV spacer connector for under supercharger.

Please call or email us with questions about your specific application!

These parts are sold for ground-vehicle use in a controlled environment.
