$ 3,395.00

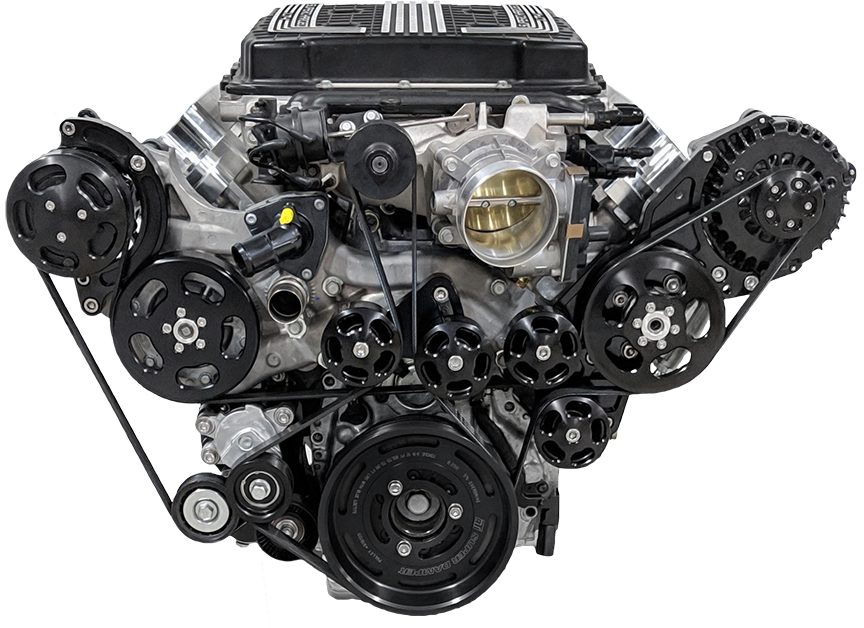

The WAK060 LT4 Supercharger Front Accessory Drive System is our newest design for the GM LT4 crate engine.  Expertly designed and tested in house by our experienced engineers, this kit will take your LT4 engine to peak performance.

Engineered for high performance street use, the WAK060 Front Drive includes key features such as -

  • CNC Machined billet aluminum brackets and pulleys, CAD designed for maximum rigidity to eliminate component flex in high horsepower applications
  • Complete belt wrap with an extra idler pulley for NO slip operation
  • An independent 8 rib belt drive for the supercharger, separate from all accessories
  • Also available for dry sump engines
  • OEM LT4 wet sump alignment, optional pulleys for dry sump engines and superchargers

Please note - Wet sump motors require dry sump 'Vette water pump (included).  Dry sump motors and/or SC require additional subassembly.  Inquire about using Edelbrock, Magnuson or Whipple superchargers - we have options available.

All our accessory drives are built to order - please allow 1-3 weeks for delivery.

Our base LT4 Accessory Drive comes with the following -

  • ATI Racing Super Damper, OE Diameter
  • Heavy Duty OEM Tensioners and Gates Belts
  • Standard 170 Amp Single Wire or GM 2 Pin Alternator with Internal Fan
  • PSC GM Type 2 Power Steering Pump with -6 and -10 AN Fittings
  • Sanden SD7 A/C Compressor
  • Dry Sump Supercharger Pulley 2.445" S.S. and ATI Crank Pulley
  • All necessary Wegner Motorsports precision CNC machined billet brackets, pulleys and stainless steel mounting hardware
